Users of the 4service NFC app can configure and analyse Tridonic LED drivers with NFC interface free of charge.
Application
The 4service NFC app enables quick and easy configuration and analysis of Tridonic LED drivers. This makes the work of installation engineers, maintenance officers and employees in similar fields significantly easier.
Functions
The following functions can be configured via the app, provided they are supported by the respective Tridonic product.

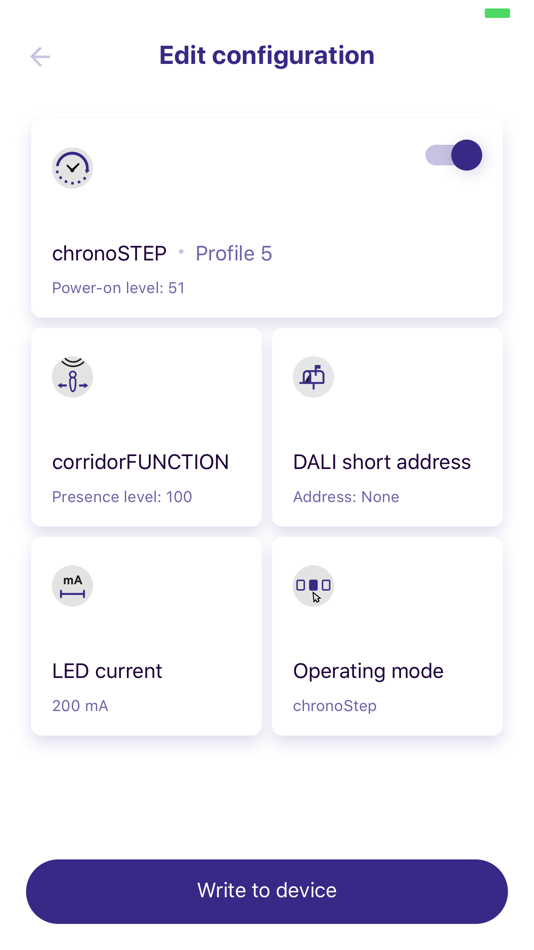

Set the driver parameters:

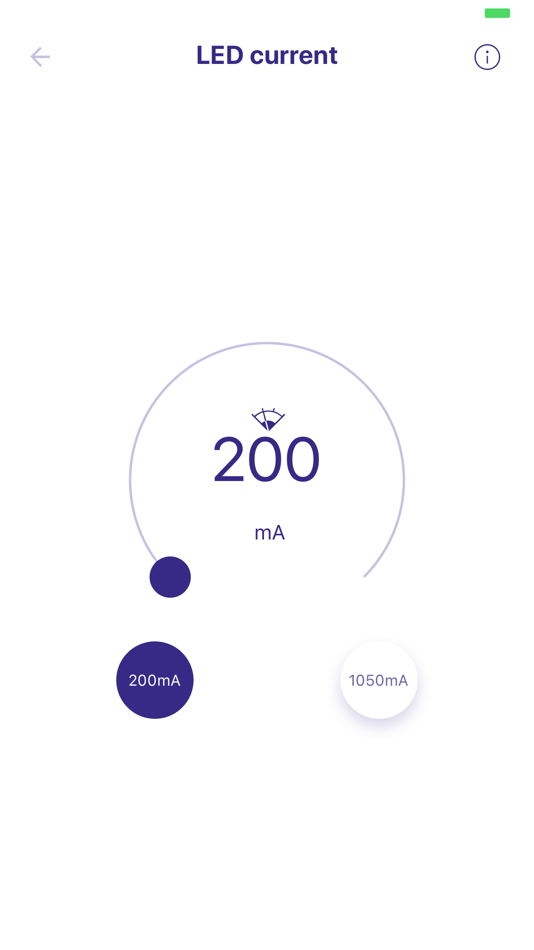

- LED output current
Set the LED output current (in mA) to adjust the brightness

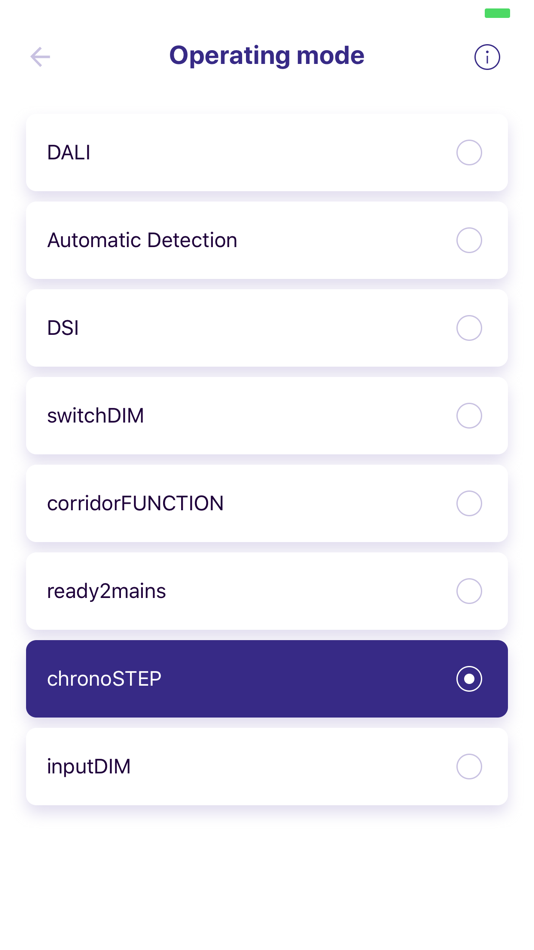

- Device operating mode
Selection of the device operating mode (DALI, corridorFUNCTION, chronoSTEP, etc.).

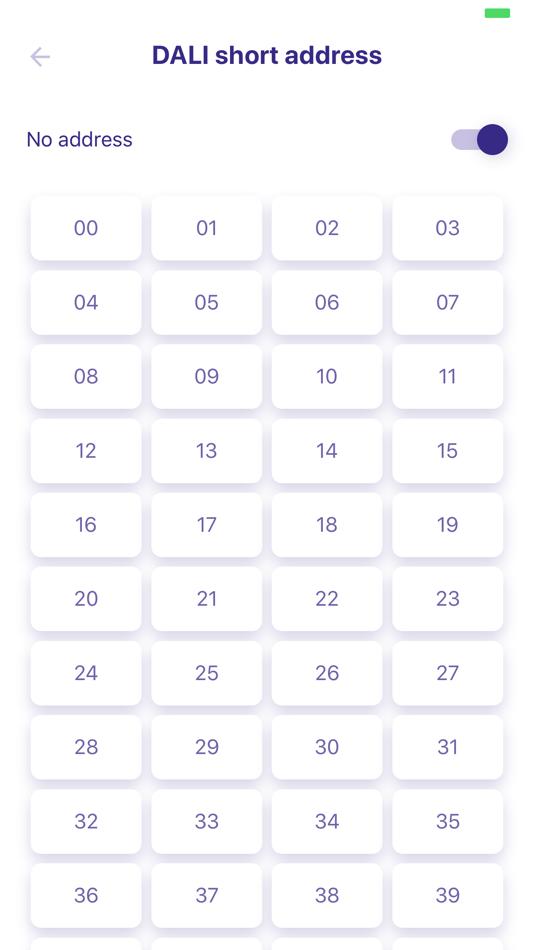

- DALI addressing
Set the DALI short address
- corridorFUNCTION
Configuration of the corridorFUNCTION (light level, fade times, etc.).

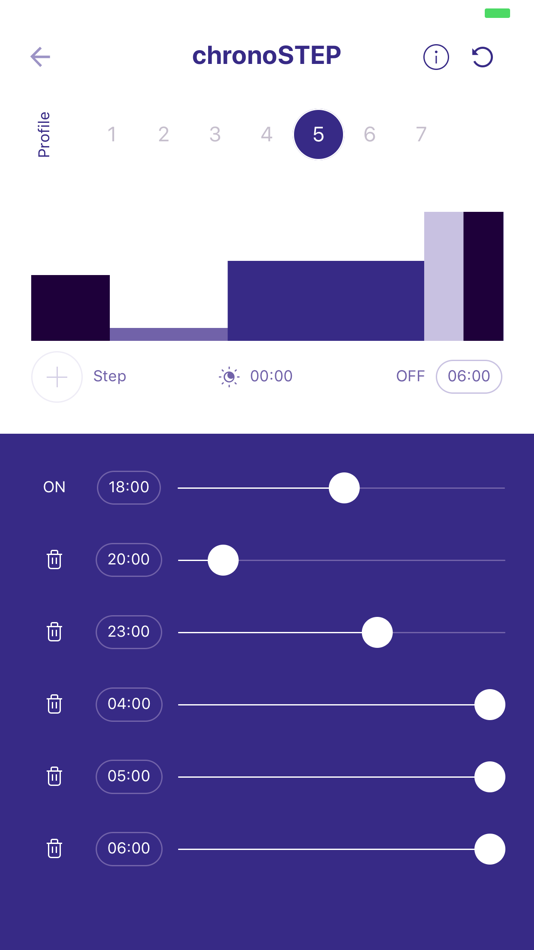

- chronoSTEP
Configuration of the chronoSTEP profiles
EZ easy addressing decoder
An addressing tool is available to convert the Bi-colour LED binary identification signal to a DALI address of between 0 to 63.
Easily transfer driver parameter settings
With the copy function, you can quickly and easily copy a device's settings to identical devices. This saves time when replacing faulty devices and when commissioning several identical luminaires.
Transfer configurations from deviceGENERATOR
With the app, configuration files that were created with the deviceGENERATOR (ending: *.trgf) can also be transferred on LED drivers.
Driver analysis
If an LED driver is faulty, the data memory can be readout. This means an initial analysis of the causes is already possible on site.

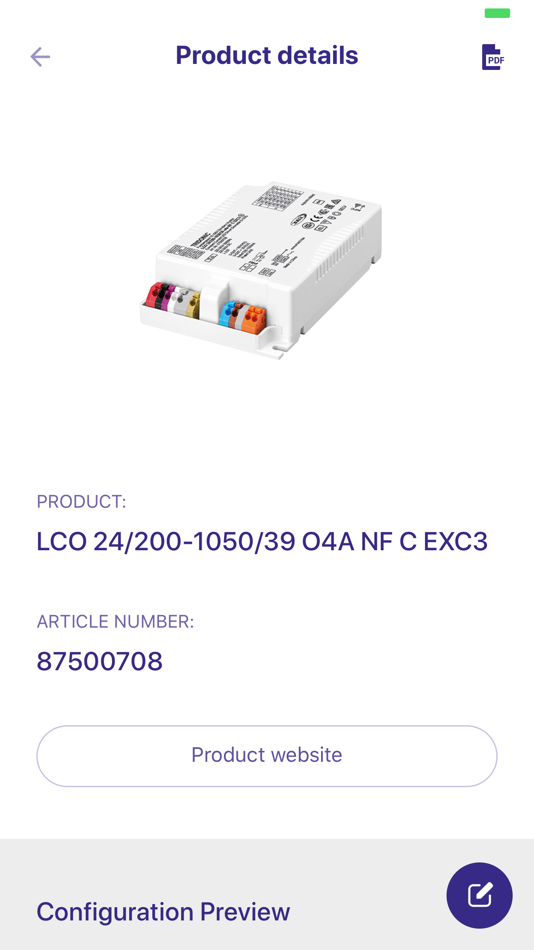

Product information

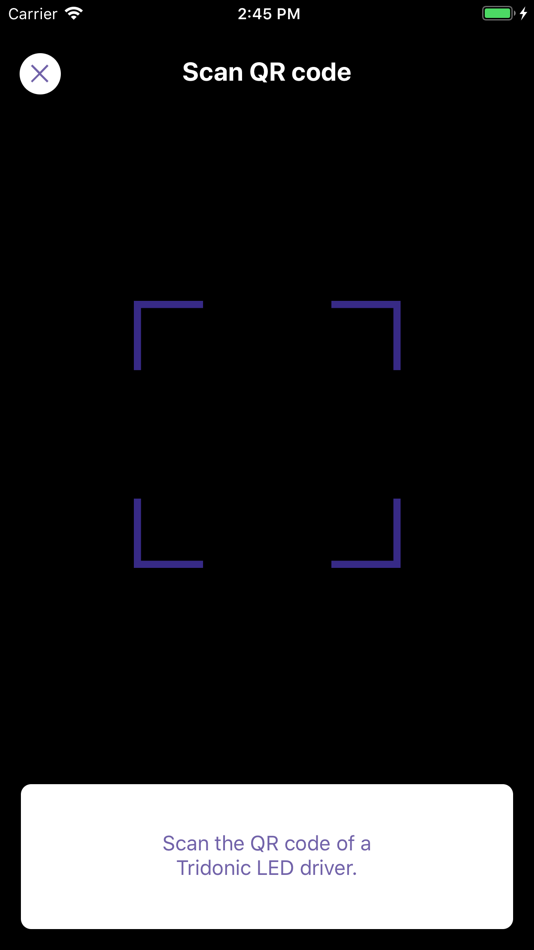

Retrieve further information about Tridonic products, simply scan the NFC tag or the QR code on Tridonic devices.
The following prerequisites must be met before you can use the app:
- Use of an LED driver with NFC interface from Tridonic.
- NFC reader with Bluetooth connection from FEIG ELECTRONIC or Tertium Technologies. Alternatively, the internal NFC reader can also be used on different smartphones.
- Active Internet connection for first-time use and for updates.
An Internet connection is not absolutely necessary for ongoing operation. To ensure that the app works properly, however, the device-specific data must always be current, i.e. regularly updated.
- If any of the driver's functions are protected by the luminaire manufacturer (e.g. by a password), these cannot be changed even with the app.
The 4service NFC app is itself is free of charge. But costs might be incurred for the required internet connection.
螢幕擷取畫面
新功能
- 版本: 2.9.1
- 發佈日期:
- - Fixed the issue that prevented the successful TRGF upload.
- Improved error messages to provide clearer and more user-friendly feedback.
