描述
Fast and safe wire sizing calculator for your next DC wiring project (battery, charger, inverter, trolling motor, stereo, and more).
Designed with and for Marine Electronics Installers, Repair Services, Boat Builders, Surveyors, Do-It-Yourselfers, and Boat Owners.
ONLY DC WIRE SIZER OFFERS these FEATURES:
- Select any DC voltage and up to 500 amps

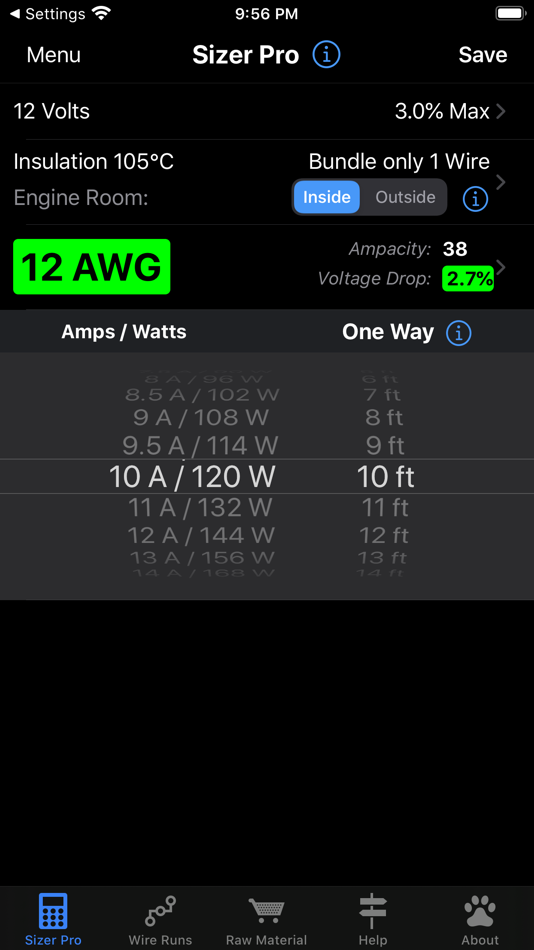

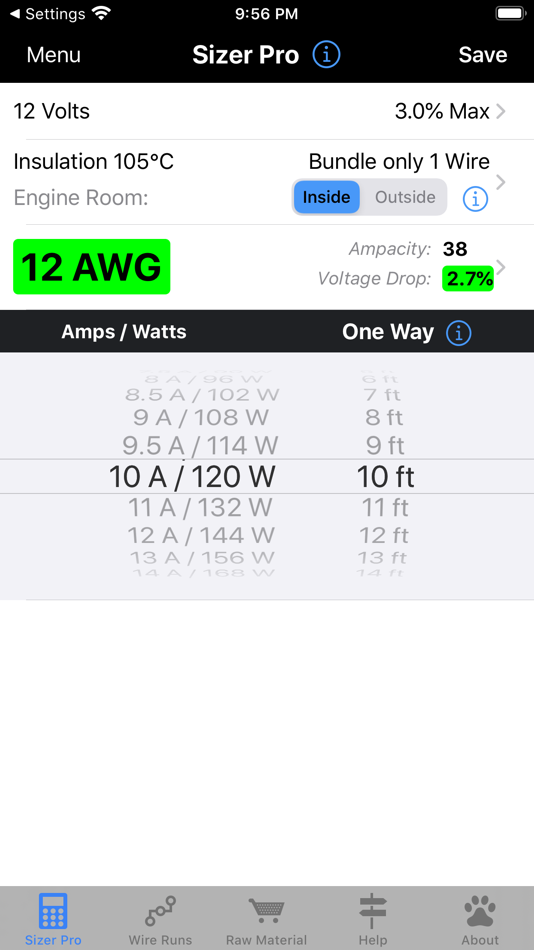

- Results display wire size, VOLTAGE DROP (VD), and AMPACITY!
- More granular “What if” analysis of ampacity & VD based on wire sizes & length
- Choose from three methods of entering wire lengths for fast entry including separate positive/negative wire lengths (when different or negative is contact grounded, like a starter)

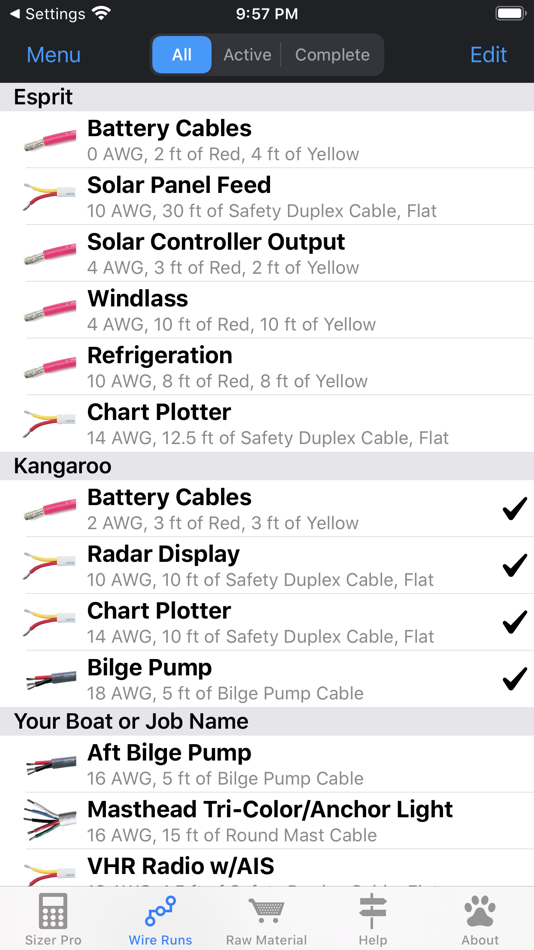

- SAVE Wire Runs with the option to select or enter Wire Run & Project Name, wire type, wire color, status, and material source (Inventory or Buy)
- EDIT Wire Runs including wire length, amps/watts, max voltage drop, insulations, inside/outside engine room, bundle, and the fields above.
- SUMs active wire run lengths by size, type, and color to make purchasing easier and less expensive when by the reel (25’, 50’, 100’, etc.)
- Select from a wire type list (e.g., primary, battery, safety, flat, duplex, triplex, mast, twisted, bilge, trailer, and solar cable)

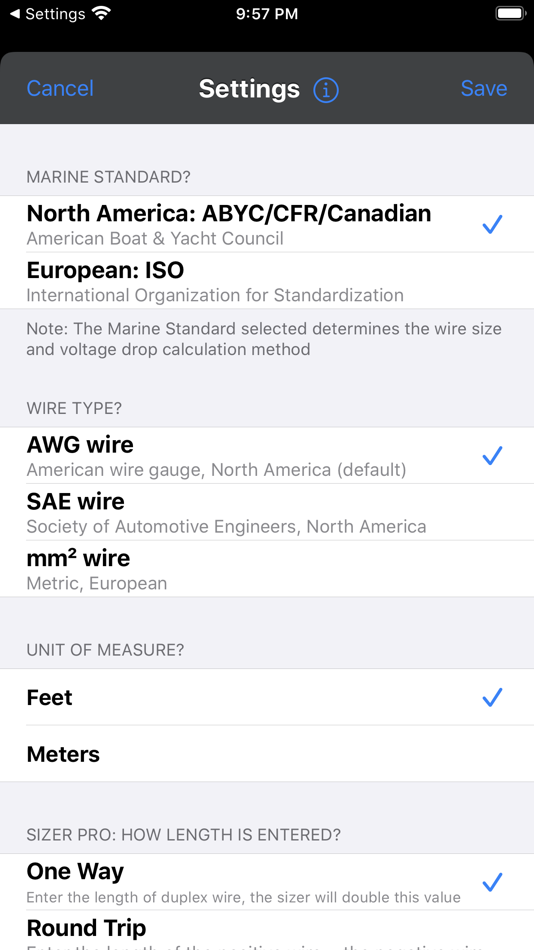

- Select marine standards (ABYC or ISO)
- Change Unit of Measurement (Feet or Meters) in existing Wire Runs

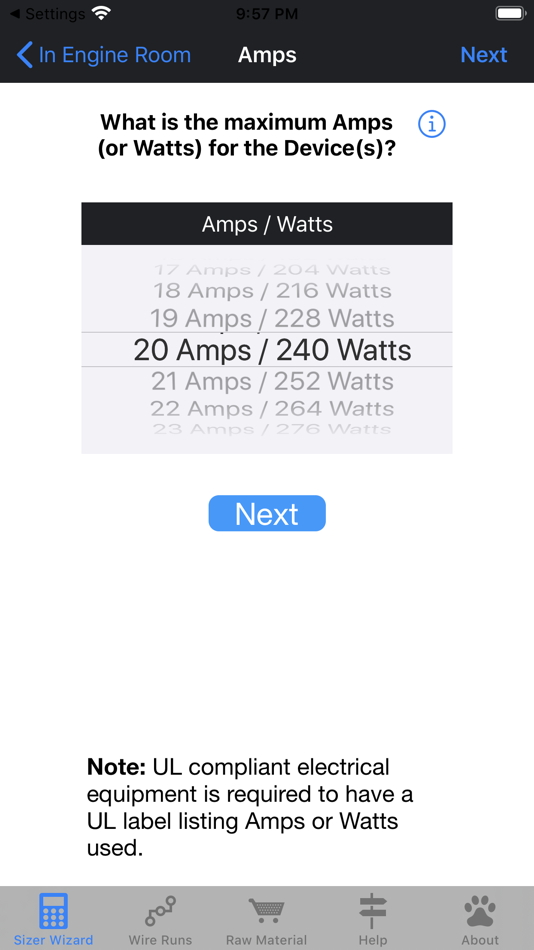

- Easy to use Sizer Wizard
- Email and Export of Wire Runs and Raw Material
MORE FEATURES:
- Set default Wire Gauge (AWG, SAE, or MM2)
- Set default Unit of Measure (feet or meters)
- Select or enter Maximum Voltage Drop %
- Select Bundle Size (1, 2-3, 4-6, 7-24, and 25+)
- Select Insulation rating (60°, 75°, 80°, 90°, 105°, 125°, and 200°C)
- Tap Inside/Outside Engine Room
- Spin Amp/Watts and Wire Length for fast entry
- Built-in Help and Technical Reference includes installation tips, connector types, color codes, tables (Voltage Drop, Ampacity, & Bundle), formulas (Power Triangle, Ohm's Law, etc.), recommended tools/books, and more.
HERE’S WHAT REVIEWERS ARE SAYING:
"The DC Wire Sizer is the most complete and comprehensive marine DC wire-sizing tool available. Developed for both marine professionals (the Wire Sizer Pro) and the occasional tinkerer (the Wire Sizer Wizard), the app determines the proper wire size, along with the voltage drop and ampacity by using the ABYC E-11 or ISO 10133 formulas and tables.” - OnboardOnline (2013)
"Stay organized by adding a wire description to the wire run and assign it to a project name (ie boat name, owner or work order). Mark the wire run as "Complete" or “Cancelled”, re-order wire runs within a project or move them between projects. Tired of adding wire runs in order to figure out what to purchase and how much? DC Wire Sizer sums the active wire runs for you by wire size (e.g. 8 AWG) and type (e.g. Safety Duplex, Battery Cable, and Primary Wire).” - marinabusiness (AU 2013)
"If you're doing a lot of wiring on your boat, the app allows you to save the calculations with project names and wire type. The app then can sum the length of the wire runs by wire type and size which can be used as a shopping list for your projects. No other app offers these unique features and that's what makes it a winner.” - i-marineapps (2013)
"This is the best wire sizer program I have seen to date. I can size and make a list at the same time also there is a better selection of amps and volts.” - Keith Herridge, Special Projects, Lyman-Morse Boatbuilding
螢幕擷取畫面
新功能
- 版本: 1.2
- 發佈日期:
- Thanks to you, DC Wire Sizer is still the highest rated (5-star) DC wire sizing app! Read below for changes in version 1.2, tips to help you get the most out of DC Wire Sizer, and what enhancements are in the pipeline.
VERSION CHANGES IN 1.2:
- Dark Mode, looks so awesome that we had to update light mode too.
- Doubled Wire Length to 600 feet Round Trip (or 300 feet One-Way).
- Minor Bug Fixes.
- Updates for iOS 13.
DC WIRE SIZER TIP #1:
DC Wire Sizer has 3 methods of wire length entry (One-Way, Total Run and Positive/Negative). Choose the wire length entry method that works fastest for you and/or your project by:
1) Double Tap the wire length field while entering a length.
2) Tap the “Menu” button (top left corner) to “Toggle Measurement Method”.
3) Or if f you have a preferred method, change the default method in “Settings” by Tapping the “Menu” button, then Tapping "Settings” and selecting the “Sizer Pro: How Length is Entered” method that matches your preference.
Note: for clarity, the Sizer Wizard only uses the “Pos (+) Neg (-)” wire length measurement method.
DC WIRE SIZER TIP #2:
DC Wire Sizer was developed to be fast and choosing the method of wire length entry (double tape the wire length field) can expedites the entry, we recommend:
When using duplex cables, where the “Pos (+) Neg (-)” wire lengths are equal, the “One-way” method is the fastest length entry. Note, the length is auto-doubled in the calculation for positive plus negative wire lengths.
2) When the negative wire is a different length or contact grounded (CG) to the chassis, negative bus bar, or engine (AKA starter or alternator), use the “Pos (+) Neg (-)” wire length measurement method. Note: ensure the bus bar or engine has adequate wire size for the total of all concurrent amp loads.
3) If you are used to using “Total length” (AKA positive plus negative wire lengths), use the “Round Trip” method.
WHAT ENHANCEMENTS ARE IN THE PIPELINE:
DC Wire Sizer 1.3, with the Australian/New Zealand (AS/NZS) marine standard, starts beta testing after this year’s AU/NZ standard release.
DC Wire Sizer 2.0, is in development and will have the following new features and enhancements:
1) Increasing amps from 500 to 1,000,
2) Multi-conductor option (updated from our commercial beta),
3) Fuse/circuit breaker sizing (updated from our commercial beta),
4) “Non-Marine” standard options for solar, RVs, cars, trucks, and other DC usages.
Since 2013, we have implemented 100% of our customer enhancement requests. In 2.0 and 3.0, we are adding several significant features requested by professionals and industry experts.
If you have any feature suggestions or questions, we'd love to hear them. If you need assistance, we're happy to help. Please email me at cases@dirtydogsoftware.fogbugz.com.
When you have time, learn more about DC Wire Sizer through the following:
- Videos on the Support page at www.dirtydogsoftware.com/dc-wire-sizer-support
- FAQ page at www.dirtydogsoftware.com/dc-wire-sizer-faq
Also check out the boating tips and recommendations on the Boater’s page at www.dirtydogsoftware.com/boating-home-page.
Thank you again for your continued support and feedback!
