Mô tả

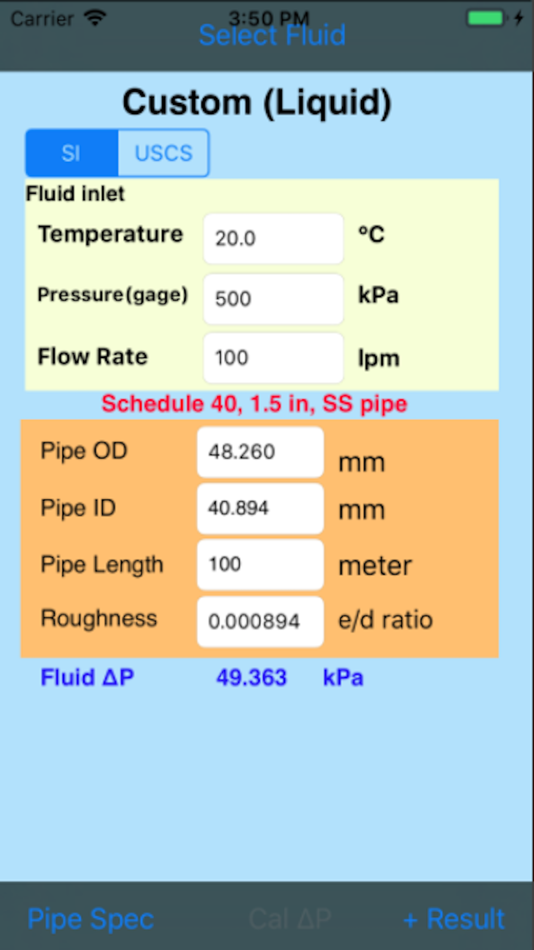

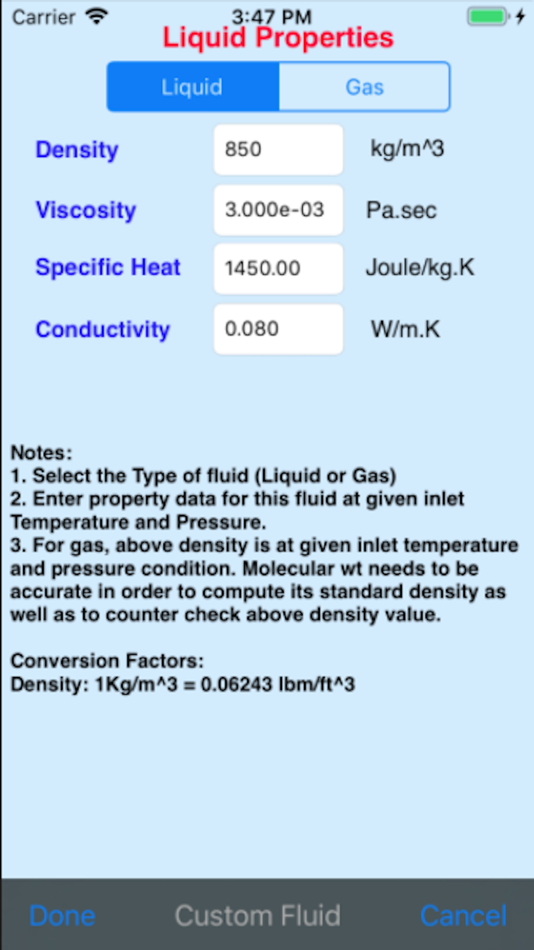

In addition, fluids that are not in the list, users can create a custom fluid with property data that can be saved and compute the pressure loss using the model provided in this app. Pressure loss is computed using Darcy’s equation, which gives a good estimate for both liquid and gases. For gases, the method is valid if the fluid velocity is within 40% of its sonic velocity. Also this app provides result of different flow parameters used in the computation of pressure loss.
Section has been added for computation of pressure losses in valves and fittings. Users can choose any generic valve or fitting from the list provided in this app that are commonly used in industries.
List of fluids:
Air, Steam, Water, Nitrogen, Oxygen, Hydrogen, Helium, CO2, Methane, Ethane, Chlorine, Ammonia, Argon, Hydraulic oil, HFC (R410A), Custom (user's choice gas or liquid).
Pipe Schedules:
10, 20, 30, 40, 60, 80, 100, 120, 140, 160.

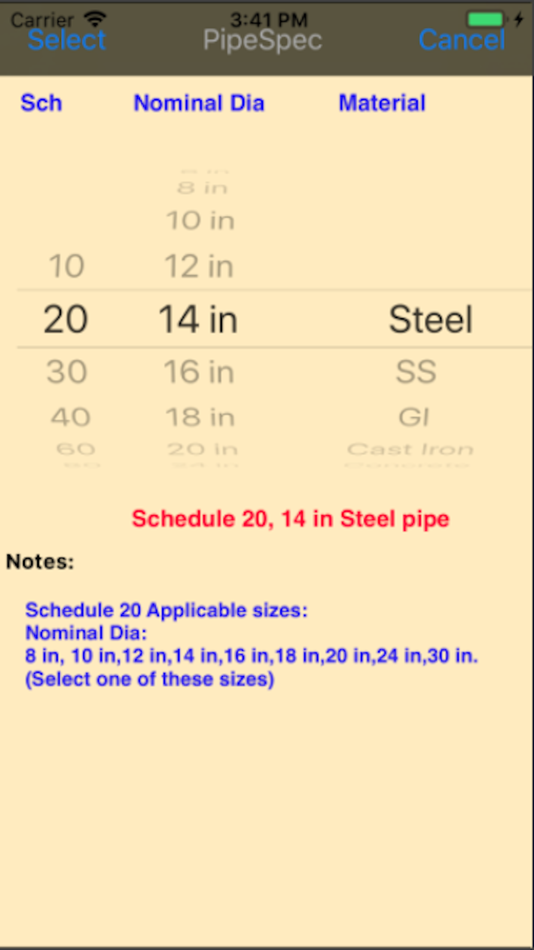

Users can pick applicable sizes under nominal diameter for which app provides the corresponding inside and outside diameter.
Material of construction:
Steel, SS, GI, CI, Concrete, Copper, Aluminum, PVC, Glass, Wood, FRP, Rubber.
Based on the size, length and material of construction, the app gives the total weight of the pipe for trade-off analysis.
Valves and Fittings:
Globe valve, Gate valve, Ball valve, Butterfly valve, Angle valve, Check-valve, Check-angle, Check-lift.
Elbow, Reducer, Diffuser, T-couple, Bend-U, Bend-45, Bend-90.

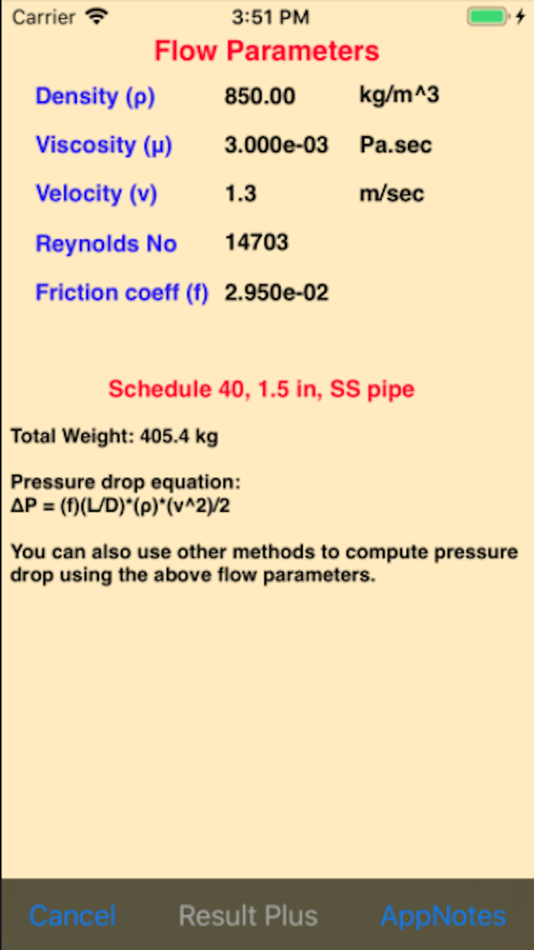

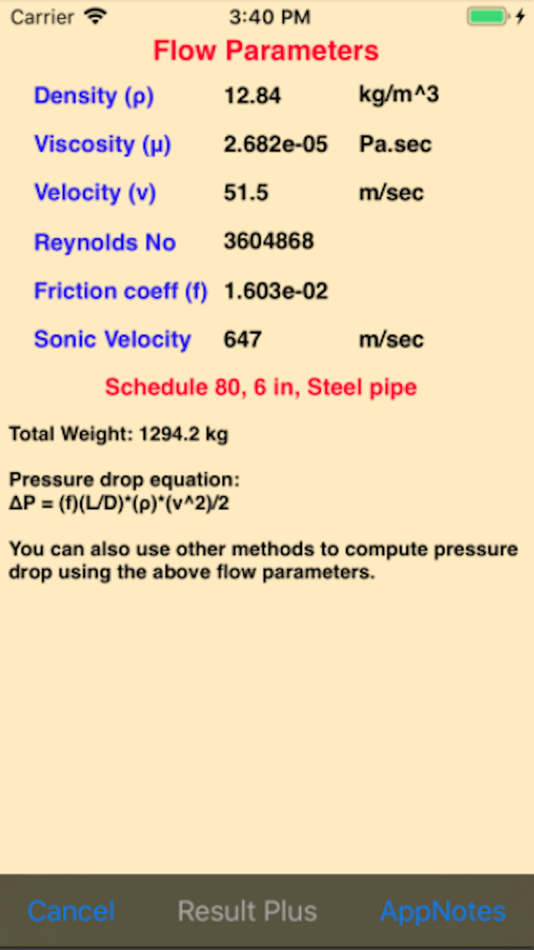

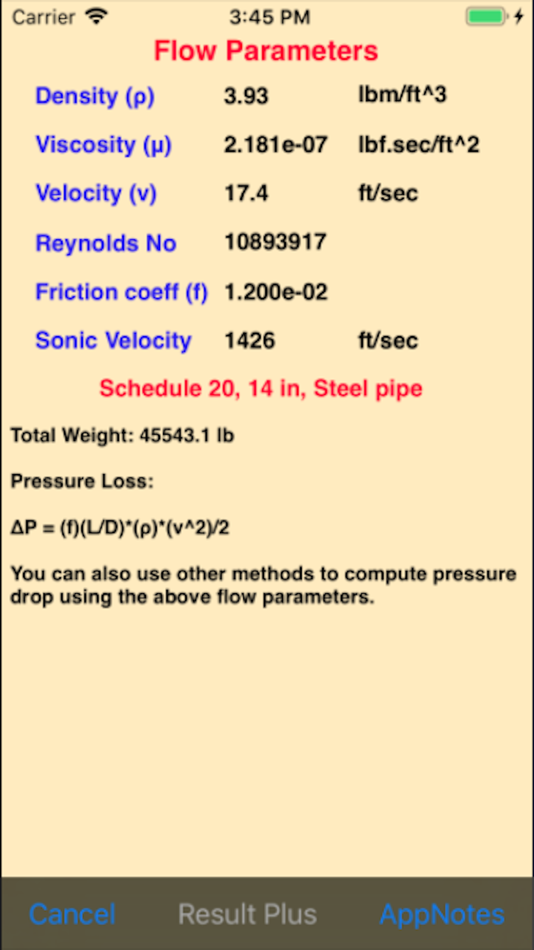

Flow Parameters:
Fluid velocity, Reynolds number and pipe friction coefficient are computed as a function of pipe size, fluid density and viscosity. App has its own algorithm to compute the coefficient of pipe friction based on roughness factor for the given material and Reynolds number under turbulent conditions. For laminar flow, it is a function of Reynolds number and irrespective of pipe roughness. For more accuracy users can edit the pipe roughness factor. For gases, additional data on sonic velocity is provided for a quick reference and validity.
Unit of Measurement:

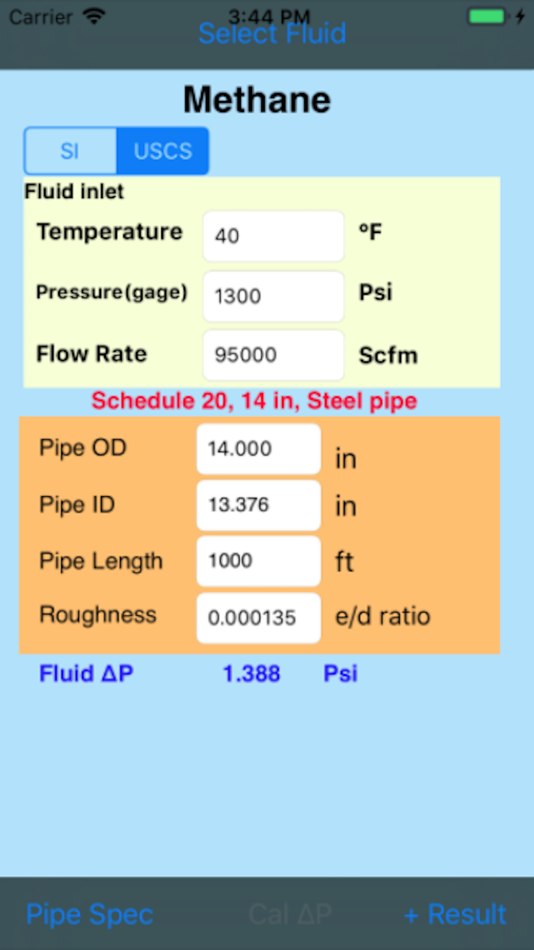

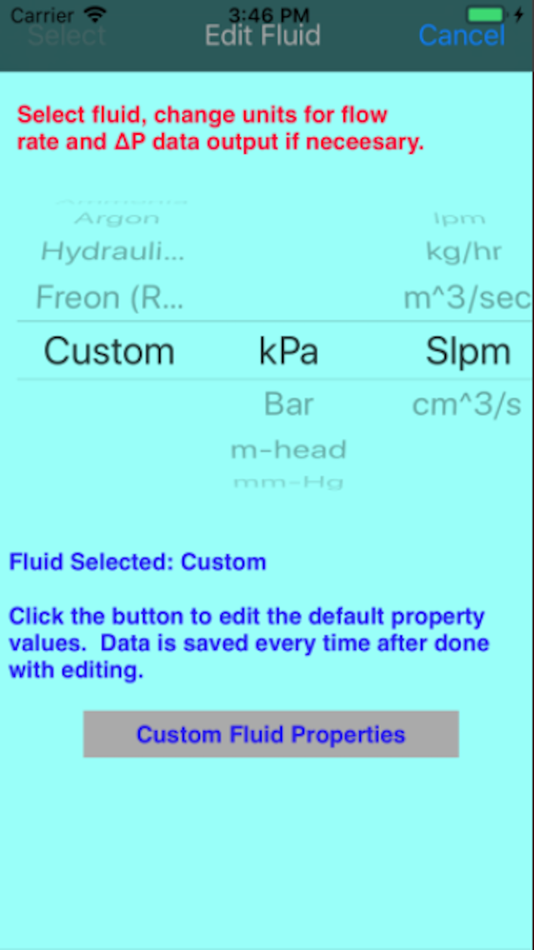

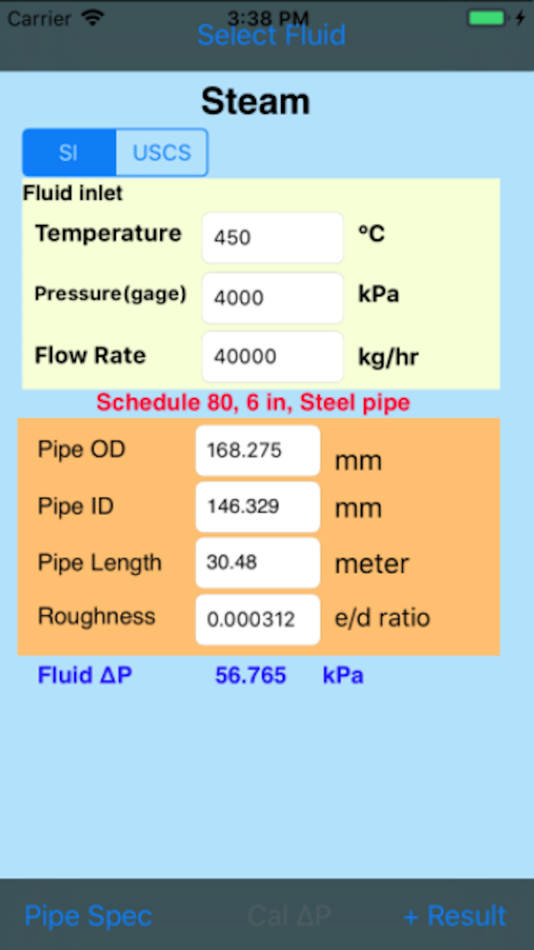

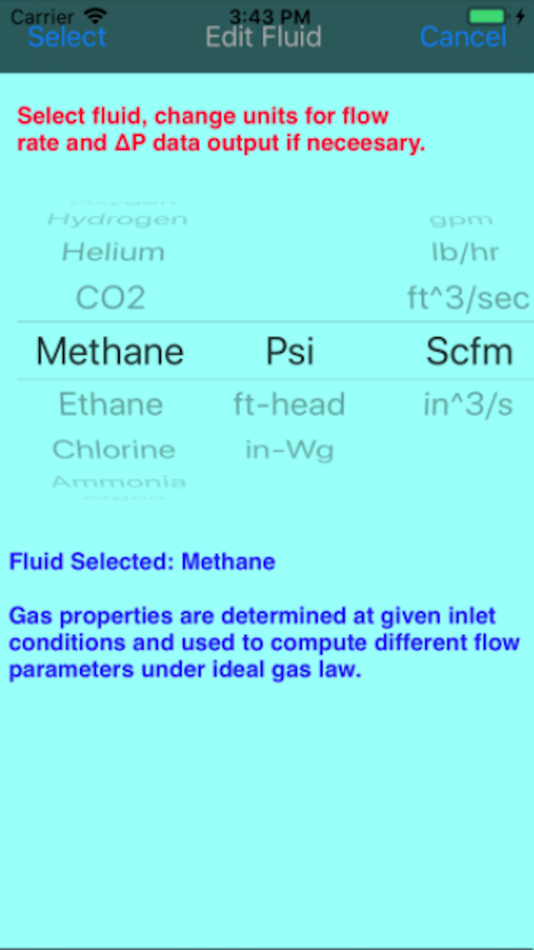

Users can choose different unit of measurement for both flow as well as pressure drop under given unit standard (SI or USCS). This can be conveniently selected while choosing the fluid from the picker list as shown in the screen shots.
Ảnh chụp màn hình
Giá bán
- Hôm nay: $4.99
- Tối thiểu: $4.99
- Tối đa: $4.99
Theo dõi giá
Nhà phát triển
- Kaup Shenoy Associates
- Nền tảng: iOS Ứng dụng (14) Windows Ứng dụng (12)
- Danh sách: 0 + 0
- Điểm: 0 + 8 ¡
- Xếp hạng: 0
- Đánh giá: 0
- Giảm giá: 0
- Video: 0
- RSS: Đăng ký
Điểm
Không tìm thấy ☹️
Xếp hạng
Không tìm thấy ☹️
Danh sách
Không tìm thấy ☹️
Đánh giá
Hãy là người đầu tiên đánh giá 🌟
Thông tin bổ sung
- Phiên bản: 2.3
- ID: FluidDeltaP
- Danh mục:
iOS Ứng dụng›Tiện ích - HĐH:
iPad,iPhone,iOS 14.3 trở lên - Kích thước:
852 Kb - Ngôn ngữ được hỗ trợ:
English - Xếp hạng nội dung:
4+ - App Store Xêp hạng:
5.0(1) - Cập nhật:
- Ngày phát hành:
