| 開發人員: | Amran AlQasmi (13) | ||
| 價錢: | $7.99 | ||
| 排名: | 0 | ||
| 評測: | 0 寫評論 | ||
| 清單: | 0 + 0 | ||
| 點數: | 0 + 0 ¡ | ||
| 點數 +1 | |||
描述
The app based on basic digital building blocks, logic gates. No knowledge of logic gates or digital circuits is required.
It offers the basic building blocks, wiring tools and a flexible plane to create live real-time digital circuits, ideal for anyone who wants to learn the basic principles of how computers work - especially students of digital engineering, learn how to create simple logic gates, latches, flip-flops, adders, shift registers and counters. it can help them perform complete lab experiments.
► Features:
- AND, NAND, OR, NOR, XOR, XNOR, Buffer, NOT, J-K Flip-Flop, D Flip-Flop, T Flip-Flop, Switch, Clock, Vcc, GND, VLink-Out, VLink-In, LED, 7-Segment Hex Display, 8-LED Stack Bar, Buzzer, and Label.
- Flood gates (3 & 4) inputs for the gates (AND, NAND, OR, NOR, XOR, XNOR).
- Optional Tri-State pin for the gates (Buffer, NOT), with Pull-up & Pull-down.
- Optional Clock pin for J-K Flip-Flop.
- Optional Clear pin for D and T Flip-Flops.
- Multi-Color smooth curved wires.
- Ability to add Virtual Links for tidy circuits.
- Unlimited scrollable plane space, for extra large projects.
- Run mode for clean circuit look, while operating live.
- Circuit Lock, for safe Run.
- Two switch operation modes (Toggle or Pulse).
- Switchable synchronized digital waveform clock generators. with adjustable frequency.
- Switches can be linked to work exclusively together.
- Both Positive edge & Negative edge triggering supported for flip-flops, with indicator.
- Configurable LED light color.
- Live value indicators at each leg, for easy analysis.
- Customizable tag for elements.
- Customizable labels can be added anywhere.
- Design-Time snap grid for easier alignment and cleaner look.
- Zoom in & out, Also can be automatically zoomed to Show Circuit extents.
- Persistent Circuit, it saves current circuit automatically to be completed later.
- Save and load circuits using file manager.
- A library of ready made circuit examples for quick jump start.
- Circuits Can be shared and printed.
- Re-assignable circuit diagram origin.
- Append another circuit to the current circuit.
- Highlight the gate wirings while dragged.
- Select, deselect, duplicate, move & delete gates in groups.
- Groups of elements can have distinctive Color and Label with customizable font and font color.
- Auto scroll the plane when reach the edged while wiring, dragging or selecting.
- Elastic selection rectangle to easily select elements.
- Undo functionality, with 10 steps backward.
- Direct wiring to use with Apple Pen.
- Support to Pick'n Drop.
- Selection / Pan tool.
- Live Timeline viewer with Play/Pause/Step Forward.
- Probe icon on each Gate chosen to be monitored.
- Boolean function Viewer for all Gates and Flip-Flops.

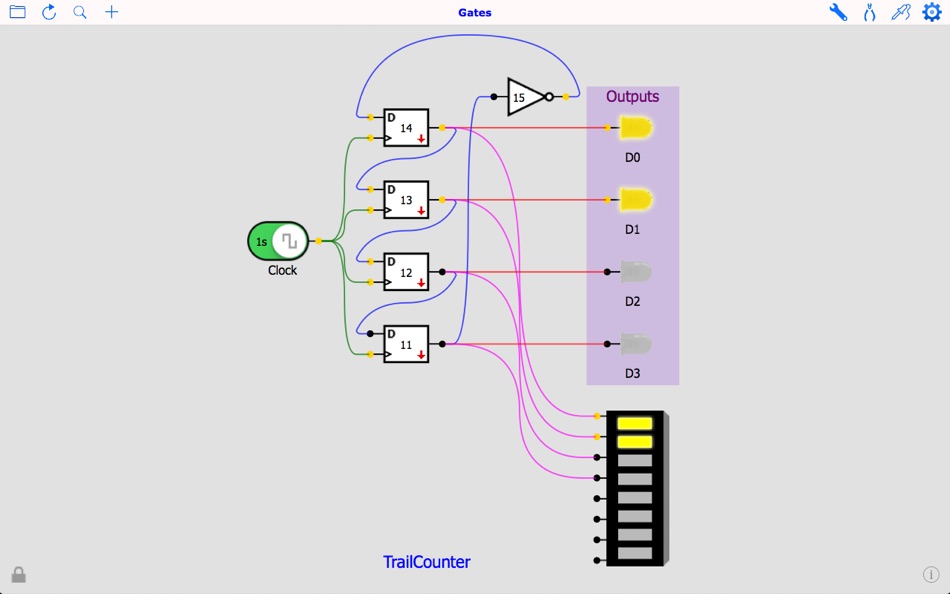

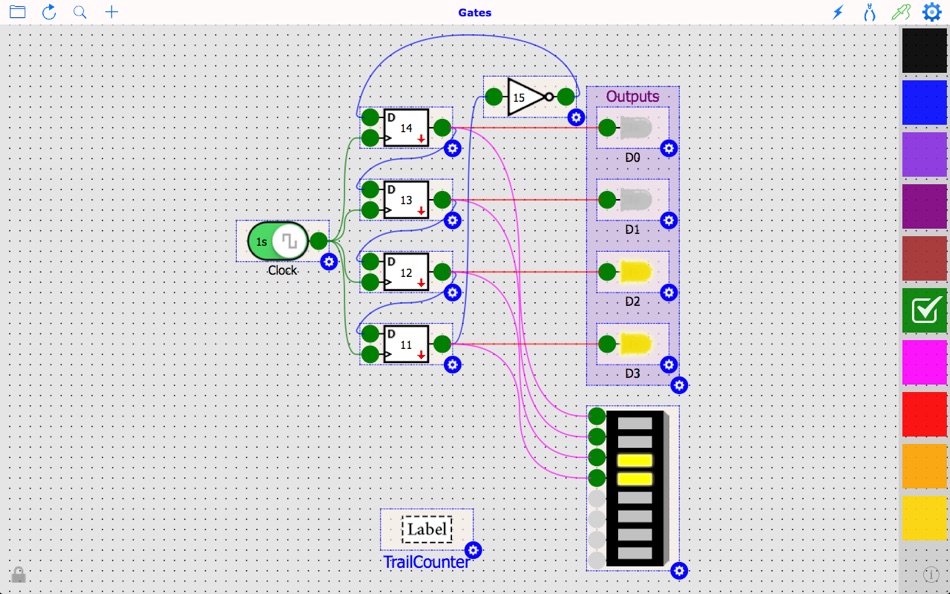

螢幕擷取畫面
價錢
- 今天: $7.99
- 最小值: $0.99
- 最大值: $26.99
追蹤票價
開發人員
- Amran AlQasmi
- 平台: iOS 應用程式 (5) macOS 應用程式 (8)
- 清單: 0 + 0
- 點數: 0 + 42 ¡
- 排名: 0
- 評測: 0
- 折扣: 0
- 影片: 0
- RSS: 訂閱
點數
未找到 ☹️
排名
未找到 ☹️
清單
未找到 ☹️
評測
成為第一個評論 🌟
其他資訊
- 版本: 4.7
- ID: MacLogicDesigner
- 類別 :
macOS 應用程式›教育 - OS:
macOS,macOS 10.9 以上版本 - 大小:
6 Mb - 內容分級:
4+ - Mac App Store 評分:
0 - 發佈日期:
- 發行日期:
聯絡人
- 個人網站:
http://www.amranapps.com
