描述
It is an integrated PCB layout design environment for the board designer who does layout work and requires the availability of powerful design and edit tools at his fingertips. McCAD PCB-ST Lite is net list driven and supports full forward and backward annotation of all net and component attributes passed to and from our McCAD Schematics Lite (available separately). Cross checking is a snap. PCB-ST contains many intelligent features such as auto via insertion, design rule checking, dynamic place, auto ground plane creation, and auto thermal dispersion.
Additional support tools are available separately from the developer's site which can be added to simplify the design process.
This FREE download version is fully functional for small projects. PCB-ST Lite project limits are controlled by the memory allocations available to the editing buffers. For the PCB-ST Lite series this means up to about 150 pins depending upon the design complexity.
You can move to the PCB-ST SE500 Educational version (available separately) should you decide that you need more capability. In the PCB-ST SE500 you can tackle designs up to the size of the original Apple I Replica computer.

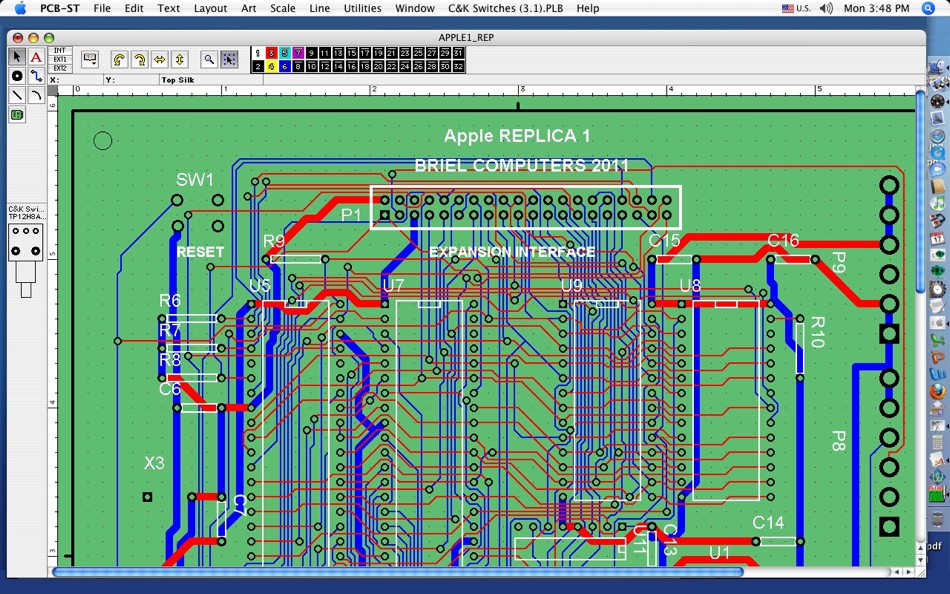

螢幕擷取畫面
價錢
- 今天: 免費
- 最小值: 免費
- 最大值: 免費
追蹤票價
開發人員
- McCAD™
- 平台: macOS 應用程式 (2)
- 清單: 0 + 0
- 點數: 0 + 0 ¡
- 排名: 0
- 評測: 0
- 折扣: 0
- 影片: 0
- RSS: 訂閱
點數
未找到 ☹️
排名
未找到 ☹️
清單
未找到 ☹️
評測
成為第一個評論 🌟
其他資訊
- 版本: 3.1.11
- ID: com.mccad.pcbstselite
- 類別 :
macOS 應用程式›教育 - OS:
macOS,macOS 10.6.7 以上版本 - 大小:
17 Mb - 支援的語言 :
English - 內容分級:
4+ - Mac App Store 評分:
0 - 發佈日期:
- 發行日期:
聯絡人
- 個人網站:
http://www.mccad.com
