| Developer: | Forwa Elade Wunde (24) | ||
| Price: | $5.99 | ||
| Rankings: | 0 | ||
| Reviews: | 0 Write a Review | ||
| Lists: | 0 + 0 | ||
| Points: | 0 + 1 (1.0) ¡ | ||
| App Store | |||
Description
To use this application, a basic knowledge of electrical technology is recommended.
This application is structured in to three separate tabs (Control methods, single phase symbols, three phase symbols)

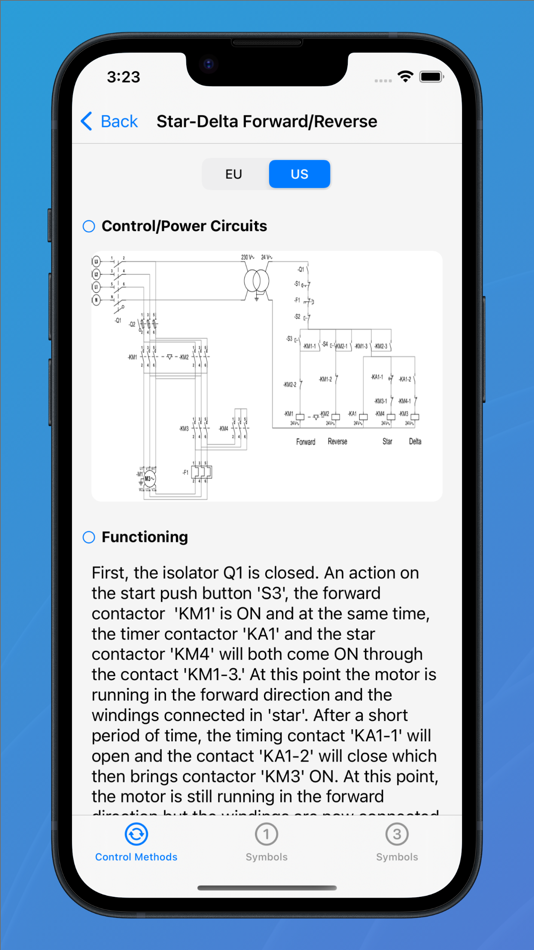

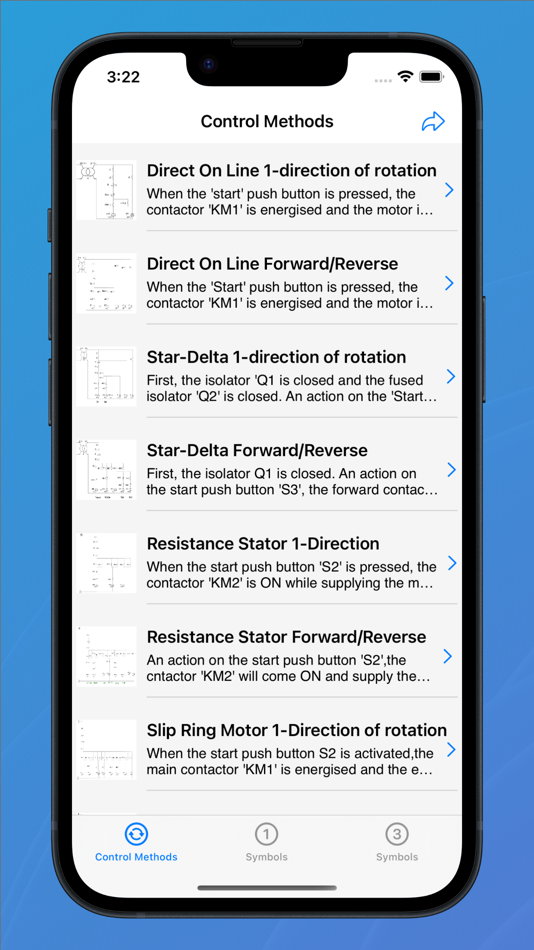

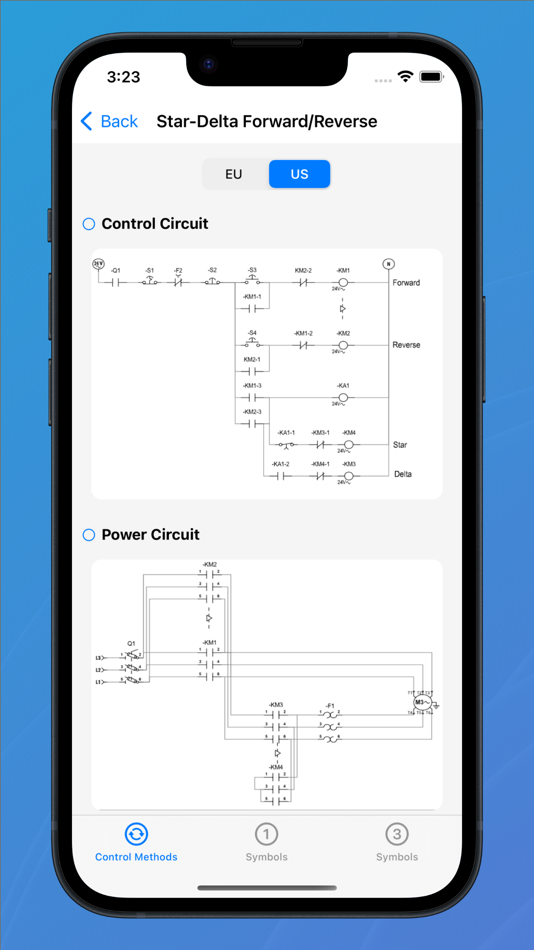

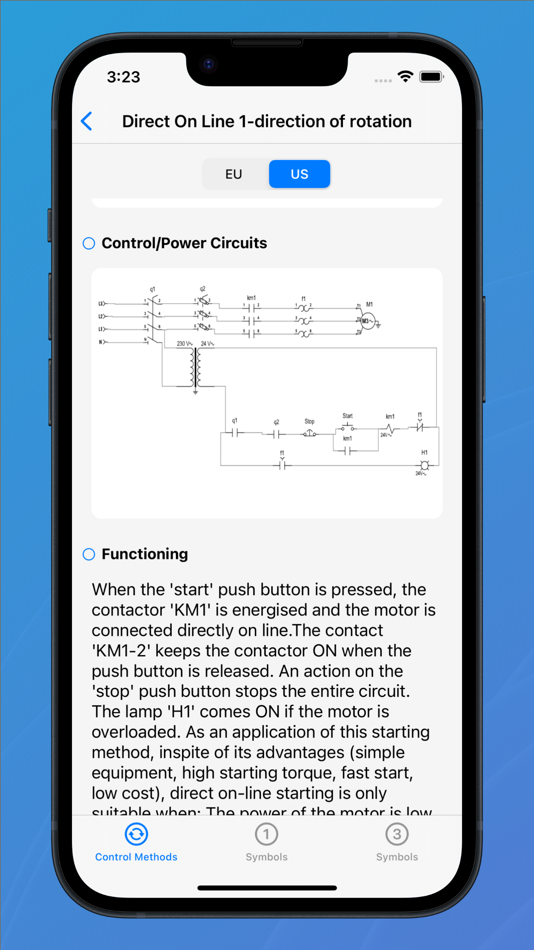

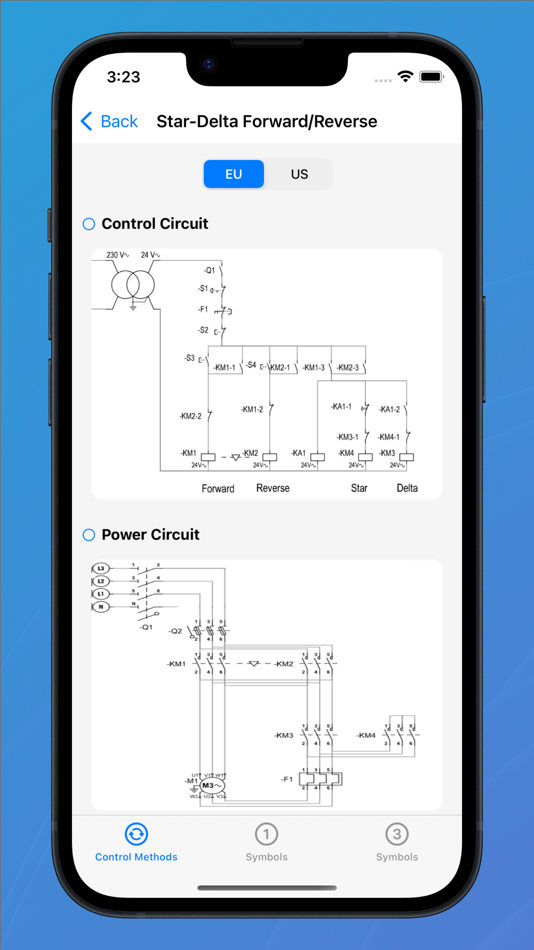

The Control methods tab which contains a list detail view of various starting circuits with explanatory for each method.

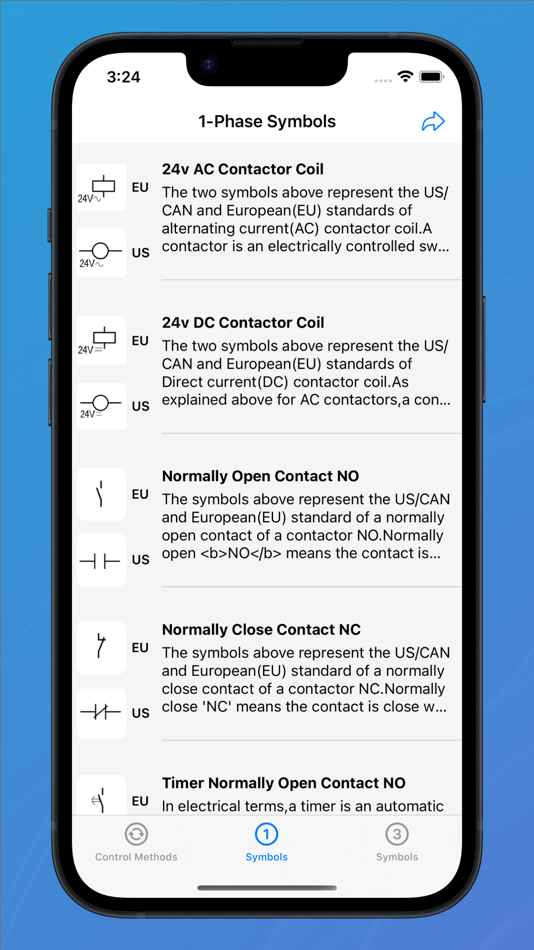

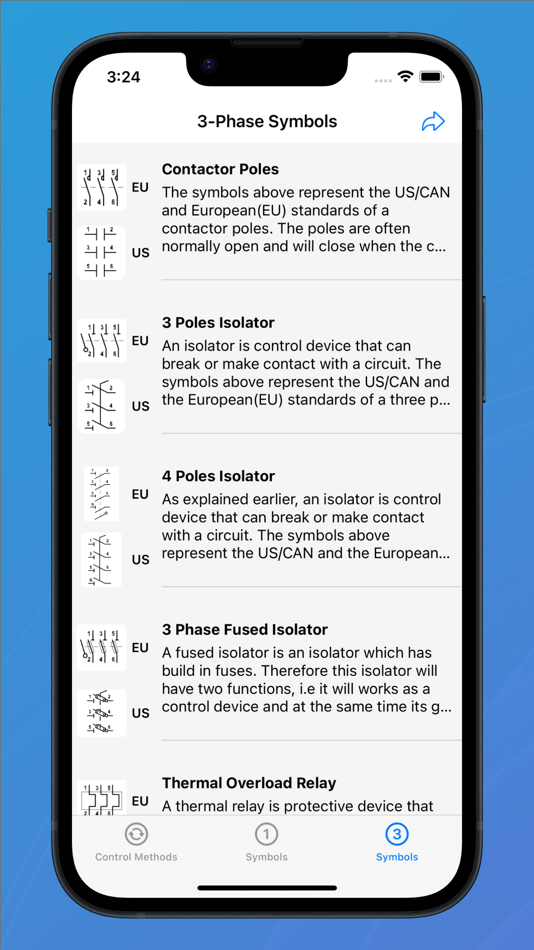

You can learn and master the following symbols from this app:The other two tabs contains a list of single phase and three phase symbol of all devices in both EU and US/CAN standards used in the application respectively.
You can learn and master the following symbols from this app:
-Fuse
-Wattmeter
-Inductor
-Ammeter
-Transformer
-Step down transformer
-Step up transformer
-Electric bell
-Battery
-Three pole isolator
-Connected wires
-Not connected wires
-SPST toggle switch
-SPDT toggle switch
-Earth ground
-Chassis ground
-Digital/Common ground
-Bus
-Resistor(IEEE)
-Resistor(IEC)
-Potentiometer(IEEE)
-Potentiometer(IEC)
-Thermistor
-Variable resistor(IEC)
-Variable resistor(IEEE)
-Trimmer resistor
-Light bulb
-Non polarized capacitor
-Polarized capacitor
-Variable capacitor
-Variable inductor
-Iron core inductor
-AC Voltage source
-DC Voltage source
-Current source
-Generator
-Battery cell
-Control voltage source
-Control current source
-Ohmmeter
-Zener diode
-Schottky diode
-PN junction diode
-Photo diode
-Varicap diode(Varactor)
-Tunnel diode
-Light Emitting diode(LED)
-Electric motor
-NPN Bipolar transistor
-PNP Bipolar transistor
-Buzzer
-Loud speaker
-Microphone
-Analog to digital converter
-Digital to analog converter
-Operational amplifier
-Schmitt trigger
-Crystal oscillator
-Dipole antenna
-NOT gate (Inverter)
-Antenna
-AND gate
-OR gate
-NAND gate
-NOR gate
-XOR gate
-D Flip-Flop
-Multiplexer 2 to 1
-Multiplexer 4 to 1
-Demultiplexer 1 to 2
-Demultiplexer 1 to 4
-Open switch
-Closed switch
-Half inductor
-chassis
-Pulse
-Saw tooth
-Step function
-Solder bridge
-Jumper
-Sinusoidal generator
-Pulse generator
-Triangular wave generator
-Basic amplifier
-Center tapped transformer
-Milli ammeter
-Milli voltmeter
-Micro ammeter
-Light dependent resistor(IEC)
-Light dependent resistor(IEEE)
-Voltmeter
-AC contactor coil
-DC contactor coil
-AC solenoid coil
-DC solenoid coil
-Iron core center tapped inductor
-Ferrite core center tapped inductor
-Attenuator
-Current transformer
-Buffer
-Constant current source
-Constant current diode
-Circuit breaker
-Center tapped inductor
-DIP switch
-Laser diode
-Electrical interlock
-Bridge rectifier
-4-pole isolator
-Feed through capacitor
-Loop antenna
-Flashing led
-Normally open limit switch
-Normally close limit switch
-DPDT switch
-DPST switch
-Normally close contact
-Normally open push button
-Fused isolator

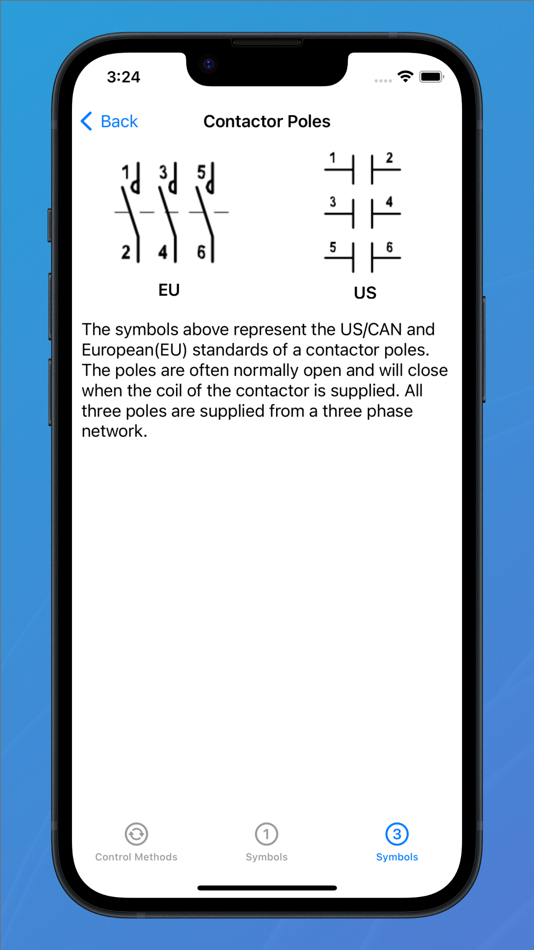

-Contactor poles
-Three phase supply
-Thermal relay
-Squirrel cage induction motor
-Wound rotor induction motor
-Rectifier
-Normally open timer contact
-Normally close timer contact
-Emergency stop push button
-Transducer
-Tri state buffer
-Power outlet
-XNOR gate
-Thyristor
-Three phase induction motor
-Emergency switch
-Normally close thermal relay contact
-N-channel FET
-P-channel FET
-Cathod Ray Oscilloscope (CRO)
-DC motor
-Photo transistor
-Photo darlington
-Single phase motor
-Opto-isolator(optocoupler)
-Relay coil
-Relay switch
-Solenoid valve
-Thermocouple
-AC to DC converter
-DC to AC converter
-DC to DC converter
-Cavity resonator
-Ceramic resonator
-Coaxial cable
-Crystal microphone
-Current limiting diode
-Darlington transistor
-Delay line
-Globe valve
-Butterfly valve
-Gate valve
-Ball valve
-Star winding configuration
-Delta winding configuration
-Lab winding configuration
-Wave winding configuration
-Female contact
-Male contact
-Female plug
-Male plug
-Galvanometer
-Synchronoscope
-Varmeter
-Tachometer
-Normally open flow switch

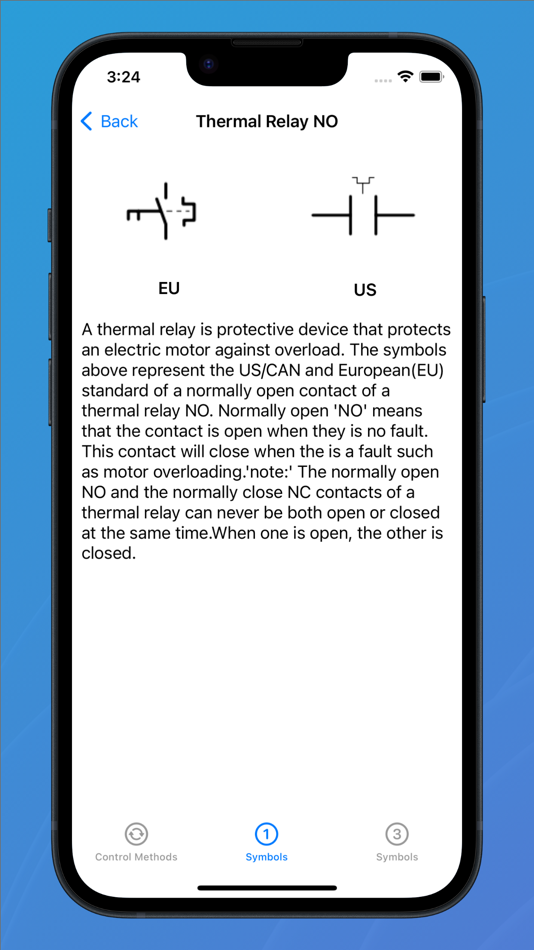

Screenshots
What's new
- Version: 1.0
- Updated:
Price
- Today: $5.99
- Minimum: $2.99
- Maximum: $5.99
Track prices
Developer
- Forwa Elade Wunde
- Platforms: iOS Apps (24)
- Lists: 0 + 0
- Points: 0 + 24 ¡
- Rankings: 0
- Reviews: 0
- Discounts: 0
- Videos: 0
- RSS: Subscribe
Points
Not found ☹️
Rankings
Not found ☹️
Lists
Not found ☹️
Reviews
Be the first to review 🌟
Additional Information
«Motor Control Circuits» is a Education app for iOS, developed by «Forwa Elade Wunde». It was first released on and last updated on . The lowest historical price was $2.99 on , and the highest was $5.99 on . This app has not yet received any ratings or reviews on AppAgg. On App Store, the current store rating is 1.0 based on 1 votes. Available languages: English, Spanish. AppAgg continuously tracks the price history, ratings, and user feedback for «Motor Control Circuits». Subscribe to this app or follow its RSS feed to get notified about future discounts or updates.
