Popis
The app is a joint development by the companies ACE Stoßdämpfer GmbH, Fabreeka Inc. and Tech Products Inc. (Kaydon - Motion Controls Group).
The app was designed for external technicians working for Motion Controls and the company’s sales partners. The purchase price is a nominal charge; the external sensor is not included in the price.
The light and convenient combination of the high-quality piezo-electronic sensor and the portable vibration and spectrum analyzer on the iPad/iPhone represents an outstanding and extremely easy to transport alternative to existing profile solutions in many applications.

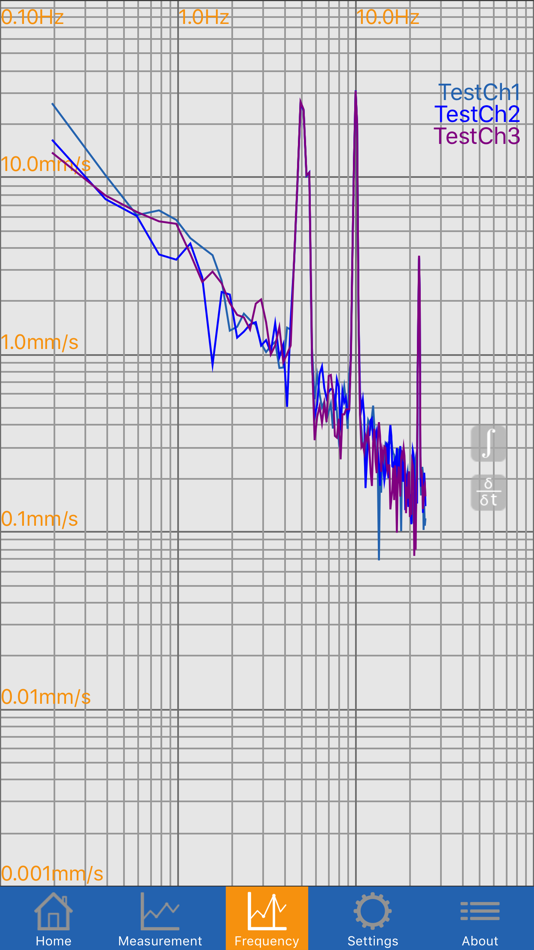

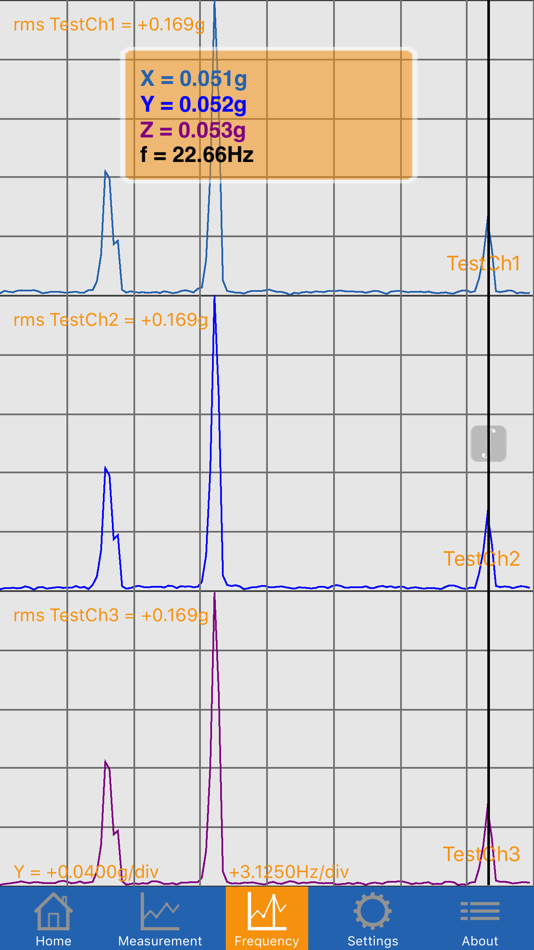

The app measures and records accelerations over time and calculates the spectral range using a FFT. The integrated 3-channel acceleration sensor has a sensitivity level of around 0.02g and a range of ± 2g. This sensitivity, with an adjustable scanning rate of 10Hz to 100Hz for the internal sensor and 1kHZ to 16kHz for the external Digiducer, means that the acceleration sensors are capable of measuring vibrations, defective bearings, excitation frequencies of machines and accelerations during material transport in a simple and accurate way.
Once the measurement has been completed, the measurement results can be saved or simply sent to your own desktop or to a customer/specialist department using the e-mail function.
Some of the core functions include:
- 3-axes of measurement
- Variable measuring time
- Variable start delay of 0-20 seconds
- Triggering

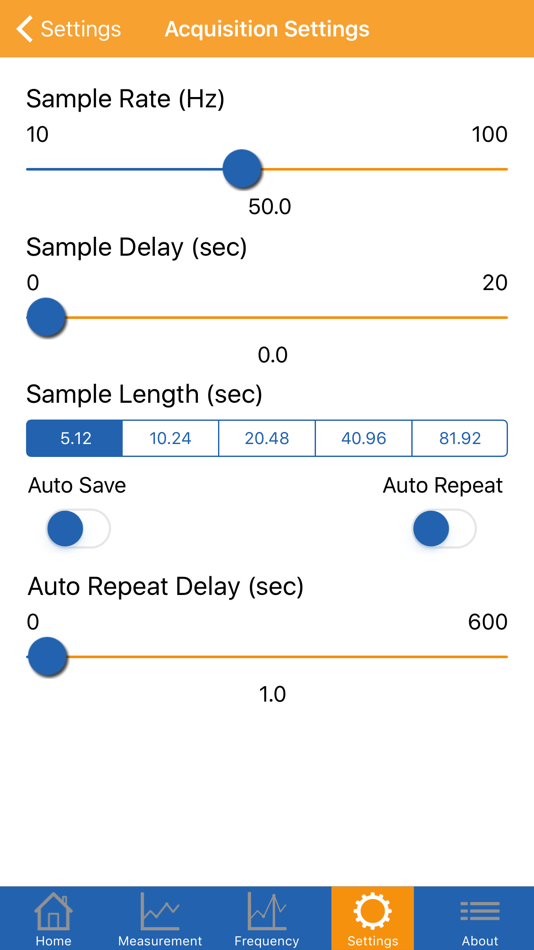

- Selection of scanning rate 10Hz to 100Hz for the internal sensor and 1kHZ to 16kHz for the external Digiducer sensor
- Adjustable autorepeat function
- Transmission/storage of measurement data by e-mail as a CSV-file
Snímky obrazovky
Novinky
- Verze: 4.13
- Aktualizováno:
- • Option to display 5 highest peaks is now also available on the iPhone
• Windowing function now has poptions for Hanning and Flattop windows
• User can set a minimum frequency to start search for peaks. This option avoids the inevitable high peaks near 0 frequency
• User can set an alarm limit for frequency peak heights
• Switches were added allowing the user to enable/disable plotting of individual channels in both time series and frequency plots
• There is now an option to enable horizontal zooming only on teh frequency plots
• Modified the anti-aliasing filter for F-Max values less than 4kHz to provide better alias rejection. This change applies to Microphone input and external accelerometer input only
